AVAILABLE SIZES: 7T to 35T
MODEL | Carrier Size(TONNE ) | Crusher Opening (nm) | Op. Oil Press. (BAR) | Oil Flow (L/MIN ) | Weight (KG) | Dimensions (H x L x W mm) |
---|---|---|---|---|---|---|
C 8-15 | 8 – 11 | 260 | 250 | 80 | 1400 | 750 x 1600 x 800 |
AC 10-16 | 10 – 14 | 370 | 250 | 95 | 1740 | 930 x 1700 x 890 |
AC 20-22 | 15 – 22 | 370 | 250 | 160 | 2465 | 1100 x 1940 x 1000 |
AC 25-37 | 23 – 35 | 370 | 250 | 180 | 3820 | 1075 x 2480 x 1250 |

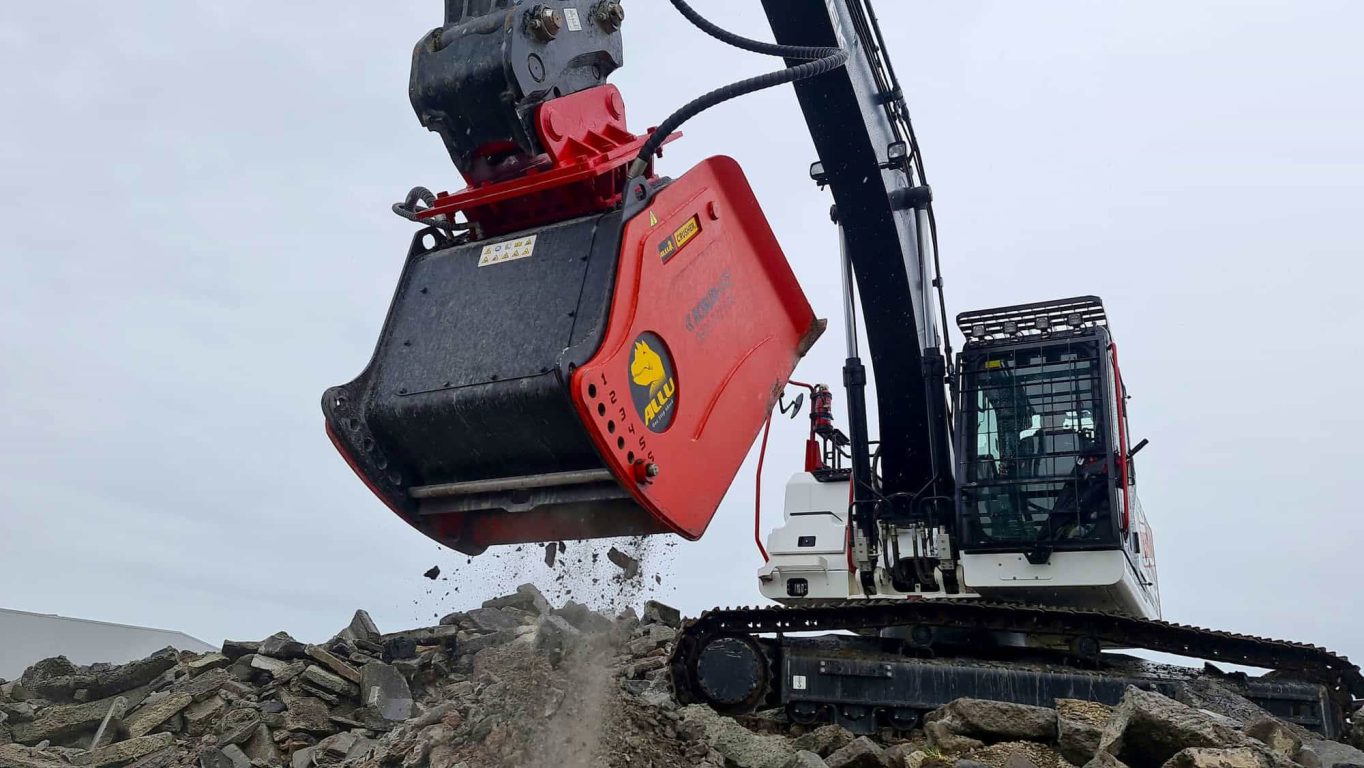

Operating on the principle of a jaw crusher, it reduces the need for traditional crushingequipment and streamlines material handling.

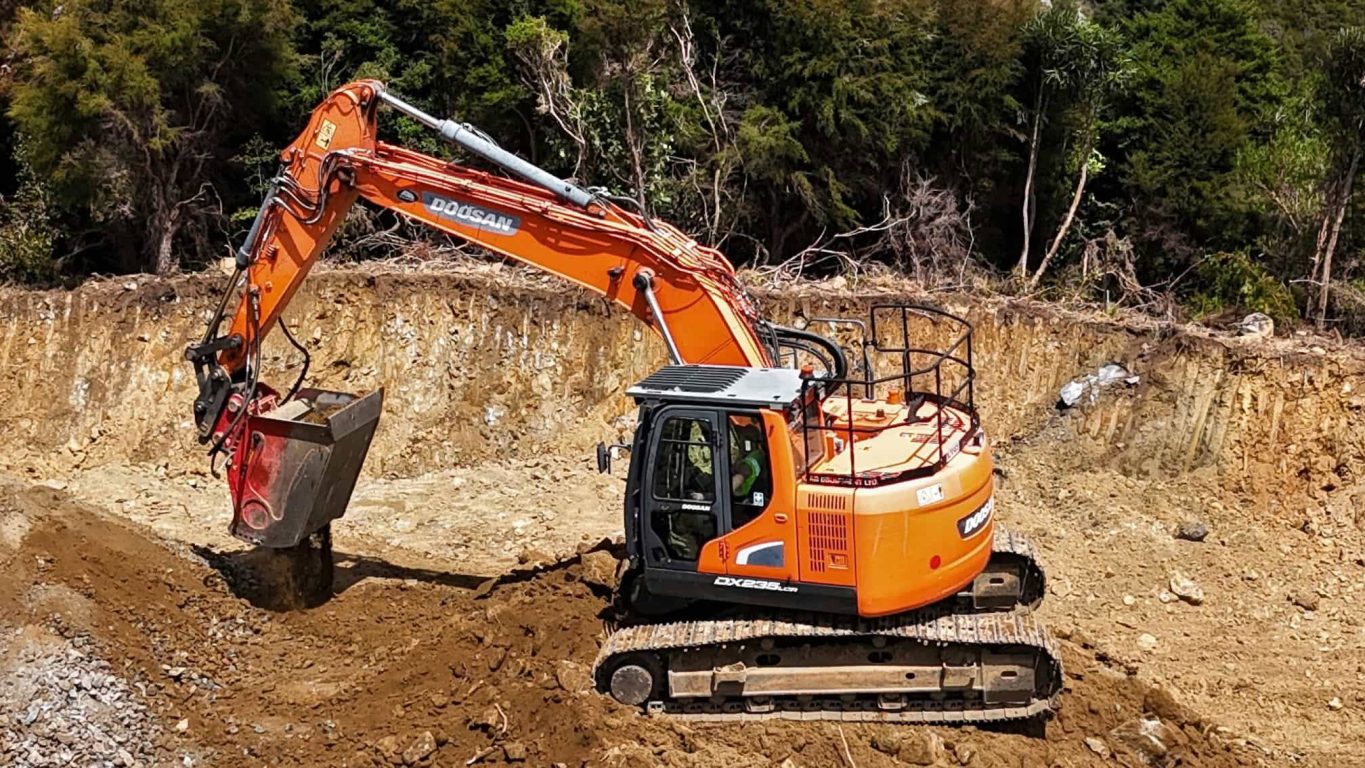

Easily attached to excavators, it boostsefficiency and productivity in constructionand demolition projects.
By recycling materialson-site, it cuts transportation costs and reducesenvironmental impact. Suitable for primary and secondary crushingtasks, it offers a cost-effective solution formaterial processing.
